SIDE IMAGING: The perfect match for the Rapid Diver System!

Post by Admin on Sat Dec 12, 2009 11:32 am

SCAN/MARK/DIVE Yes, we scan!


Side Imaging has come a long way in the past few years. Sonar equipment that used to cost 10's of thousands of dollars are now not only inexpensive, but extremely capable.

Side Imaging technology will enable you to clearly see what is beneath the surface in "jaw dropping" clarity. I personally like the advantages of seeing potential entanglement issues during the pre-dive and also getting a great perspective on the underwater topography.

I recommend every dive team to employ a Side Imaging system and this new TOPIC is dedicated to sharing information about Side Imaging technology.

Please note that we have a SCAN/MARK/DIVE training program. Here is some information:

SCAN/MARK/DIVE Training is now available to enhance all PSD training programs in Florida. Learn the latest Side Imaging techniques, GPS direct target marking and Rapid Diver response target inspection. The training is designed to be done in conjunction with the existing department dive training evolutions and only requires a few hours. The training can either be a "dry" day, pool day (with smaller inflatable--no motor) or we can go to your local training lake for "real-time" training.

We will supply all equipment,Inflatable boats (Zodiac), Side Imaging technology (Humminbird 1197c) and the Rapid Diver systems with the excepting for personal dive gear. There is no charge for this training, call or email to reserve your SCAN/MARK/DIVE training dates. We will keep you informed of other inter-agency training locations if you are interested in joining teaming up with another Department.

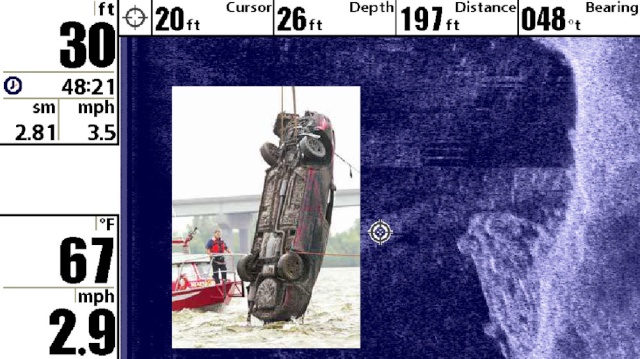

The story behind this image is that a lady ran off in the Mississippi River around Alton Illinois in 2002. For three years the search for the car/ her body was conducted using other sonar equipment and dive teams; however, they had no luck in being able to locate/image the car. In 2005 a man was fishing in the area with the 987c SI unit and recorded this image. Immediately he knew that this was a car and knew the story of the missing lady. He notified authorities and they were able to recover the car along with the body of this lady.



The image above was taken on the Tennessee River. This image clearly shows a Cessna airplane that crashed into the Tennessee River in 2003. For two years search teams had looked for the Cessna without success. Also in the image you can see large schools of baitfish. The Cessna was recovered after it was found by the side imaging unit. A photo of the recovered Cessna is shown below.
